Ozonated Water Preparation
Used with compatible tubing and a diffuser to transfer ozone into water.
Legacy Tri-Oxy Fresh Support
Discontinued Legacy Product
Owner Support, Manual, Parts, and Replacement Information

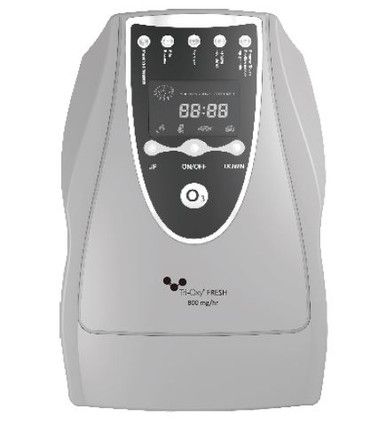

Tri-Oxy FRESH 800 mg/hr Ozonator Legacy Support
The Tri-Oxy FRESH 800 mg/hr Ozonator has been discontinued and will not be restocked. This page remains available for current owners who need the operating manual, original specifications, compatible accessories, setup guidance, maintenance information, and replacement options.
The improved Tri-Oxy REION is being developed as the replacement for FRESH. REION retains an 800 mg/hr ozone-generation function and adds a separate plasma ion generator for air purification.
Legacy Owner Support 800 mg/hr Ozone Output Remote Control Intermittent Timer Internal Fan Replacement Parts
Product Status
FRESH is no longer available for purchase
Tri-Oxy FRESH was a compact tabletop ozone generator with an output of 800 mg/hr. Later versions included an internal fan, remote control, intermittent timing functions, and a 50–60 micron diffuser stone with stainless steel barb.
Although the unit is discontinued, Creatrix Solutions continues to provide access to support information, manuals, and compatible accessories for customers who already own the machine.
Looking for a current tabletop ozone system?
Tri-Oxy REION is the planned replacement for FRESH and combines 800 mg/hr ozone generation with a separate plasma-ion air-purification function.
Original FRESH Functions
Compact ozone generation for water and manual-approved applications

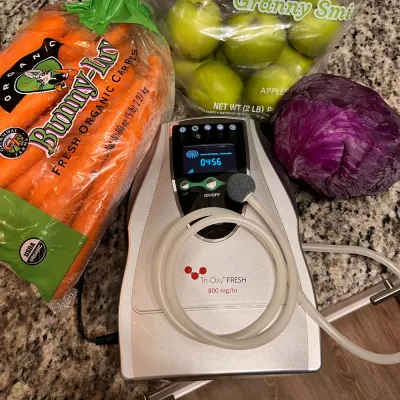

Produce Washing
Freshly prepared ozonated water could be used in fruit and vegetable washing routines.
Plant and Garden Care
Used for compatible plant-spraying and misting applications described in the manual.
Timed Ozone Output
Later units included remote operation and intermittent ozone timing functions.
What Is Ozone?
A reactive form of oxygen used for short-term oxidation
Ozone, or O₃, is made of three oxygen atoms. The FRESH machine generated ozone gas, which could be transferred into water through compatible tubing and a diffuser stone.
Dissolved ozone reacts quickly with susceptible microorganisms, odors, and selected organic compounds, then naturally breaks down over time. Because ozone does not remain stable in water, freshly prepared ozonated water should be used promptly.
Do not intentionally inhale ozone gas
Ozone gas can irritate the respiratory system. Use ventilation, keep ozone away from the breathing zone, and follow the original FRESH manual.
Original Product Specifications
Tri-Oxy FRESH at a glance
| Product status | Discontinued and not returning to stock |
| Product type | Compact tabletop ozone generator |
| Ozone output | 800 mg/hr |
| Primary function | Ozone generation for compatible water and manual-approved applications |
| Later-model cooling | Internal fan |
| Controls | Remote control and intermittent timing functions on upgraded models |
| Diffuser | 50–60 micron diffuser stone with stainless steel barb on upgraded packages |
| Replacement model | Tri-Oxy REION |
Basic Water-Ozonation Setup
Connect the tubing and diffuser according to the original manual
1. Place the Unit Safely
Set FRESH on a stable, dry tabletop away from water and splashing.
2. Connect Compatible Tubing
Attach ozone-compatible tubing securely to the ozone outlet.
3. Attach the Diffuser
Connect the diffuser and place it near the bottom of the water container.
4. Operate as Directed
Use the manual’s timing instructions and use the ozonated water promptly.
Maintenance and Care
Regular inspection helps keep a legacy FRESH system working properly
Inspect Tubing
Check tubing for cracking, cloudiness, stiffness, loosened connections, or odor. Replace degraded tubing with compatible material.
Clean the Diffuser
Mineral buildup can reduce bubble output. Clean or replace the diffuser according to the accessory instructions.
Keep the Unit Dry
Never allow water to enter the generator. Keep the housing, controls, cord, and ventilation openings dry.
Protect Airflow
Keep vents clear of dust and obstruction so the internal fan can cool the unit properly.
Check Connections
Push tubing fully onto fittings and verify that connections are secure before each use.
Store Properly
Store the dry unit and accessories away from extreme heat, cold, moisture, and direct sunlight.
Troubleshooting
Common issues to check before requesting support
No Bubbles in the Water
- Confirm tubing is connected to the ozone outlet
- Check for kinks, loose connections, or splits
- Inspect the diffuser for blockage
- Verify that the selected timer or mode is active
Reduced Bubble Output
- Clean or replace a mineral-clogged diffuser
- Replace stiff or degraded tubing
- Shorten unnecessary tubing length
- Check that fittings are fully seated
Unit Becomes Hot
- Turn the unit off and allow it to cool
- Make sure ventilation openings are clear
- Do not cover the machine during operation
- Stop use if the unit smells burned or behaves abnormally
Remote Does Not Respond
- Check or replace the remote battery
- Aim the remote toward the unit
- Remove obstructions between the remote and machine
- Use the unit controls if available
Do not open or electrically modify the unit
Stop using FRESH if the cord, plug, housing, fan, or internal electrical components appear damaged. Electrical repairs should be handled by a qualified person.
Manuals, Accessories, and Replacement Equipment
Support links for current FRESH owners
Tri-Oxy FRESH Manual
Review the original setup, operation, timing, maintenance, and safety information.
View FRESH ManualOzone Generator Accessories
Browse available diffuser stones, tubing, fittings, jars, lids, pumps, and replacement components.
Shop Ozone AccessoriesTri-OXY Refresh
Explore compatible ozone diffusion and degassing equipment for water preparation.
View Tri-OXY RefreshTri-Oxy REION
Learn about the coming replacement for the discontinued FRESH tabletop ozonator.
View Tri-Oxy REIONAll Water Ozonators
Compare current Tri-Oxy water ozonators and ozone generator systems.
View Water OzonatorsOzone Manuals
Find additional operating and setup manuals for Tri-Oxy equipment.
View Ozone ManualsFrequently Asked Questions
Tri-Oxy FRESH legacy support FAQ
Is the Tri-Oxy FRESH still available?
No. Tri-Oxy FRESH has been discontinued and will not be restocked.
What replaces the Tri-Oxy FRESH?
The improved Tri-Oxy REION is being developed as the replacement. It is planned to combine 800 mg/hr ozone generation with a separate plasma ion generator for air purification.
Can I still access the FRESH manual?
Yes. The original FRESH manual remains available through the manual link on this page.
Can I still buy replacement accessories?
Available diffuser stones, tubing, fittings, containers, and other compatible accessories are listed in the Ozone Accessories category.
What was the ozone output of FRESH?
Tri-Oxy FRESH was rated at 800 mg/hr ozone output.
Why are there no bubbles in the water?
Check the tubing connection, kinks, leaks, timer setting, and diffuser for blockage or mineral buildup.
Can I use ordinary tubing with FRESH?
Use tubing intended for ozone applications. Ozone can degrade incompatible materials and create leaks or reduced output.
Can I inhale ozone from the FRESH?
No. Ozone gas can irritate the lungs and airways. Keep ozone away from the breathing zone and provide ventilation.
Can I still use Tri-OXY Refresh with FRESH?
Existing owners may continue using compatible diffusion and degassing equipment according to the applicable instructions.
Should I repair a damaged FRESH myself?
Do not open or electrically modify the unit. Stop using damaged equipment and consult a qualified repair professional.
Need a replacement for Tri-Oxy FRESH?
Meet the improved Tri-Oxy REION.
REION is being developed as the next tabletop Tri-Oxy system, combining 800 mg/hr ozone generation with separate plasma-ion air purification.
View Tri-Oxy REIONRefine by
Sold out

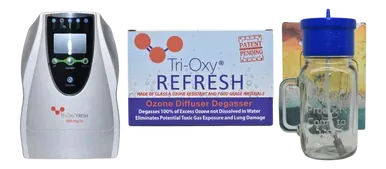

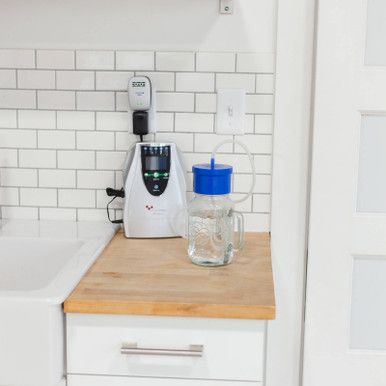

Ozone Water Sterilizer - Food & Enema Prep Kit
