UL Report
Sauna Fix® Third-Party Testing
Sauna Fix UL Listing Report (US & Canada)
UL Listed — US & CanadaUL certification of the Sauna Fix near-infrared sauna fixture as a portable electric luminaire. UL evaluated the 120 V model SF4B and Listed it to UL 153 in the United States and to CSA C22.2 No. 12 in Canada, under File E470205.
UL File E470205 UL 153 (US) CSA C22.2 No. 12 (Canada) 120 V · Type R-40
This page holds the full UL Listing report for the Sauna Fix near-infrared sauna fixture, evaluated by UL (Underwriters Laboratories Inc.) as a portable electric luminaire, model SF4B. The report documents the product’s construction and records that it is Listed both in the United States (USL, to UL 153) and in Canada (CNL, to CSA C22.2 No. 12-1982), under File E470205. The complete report images appear further down the page; the summary below explains what the Listing means and what was evaluated.
| Sample | Sauna Fix® near-infrared sauna fixture (incandescent portable luminaire) |
| Model | SF4B |
| Electrical rating | 120 V ac, 60 Hz |
| Lamps | Incandescent, medium base, Type R-40, maximum 250 W × 4 |
| UL File / report | E470205, Vol. 1, Sec. 1 |
| Listings | USL — United States Standard Listed; CNL — Canadian Standard Listed |
| Standards | UL 153 (Portable Electric Luminaires); CSA C22.2 No. 12-1982 (Portable Luminaires) |
| Certifying body | UL (Underwriters Laboratories Inc.) |
| Issued | December 2, 2014 |
| Conclusion | Listed — complies with UL 153 (US) and CSA C22.2 No. 12 (Canada) |
What This Report Covers
UL Listing to the US and Canadian luminaire safety standards
UL 153 is the United States safety standard for portable electric luminaires. A UL Listing means UL examined the product’s construction and materials and found that it complies with the standard’s requirements for electrical and fire safety. The CNL designation extends the same evaluation to Canada under CSA C22.2 No. 12, so the fixture is Listed for both markets.

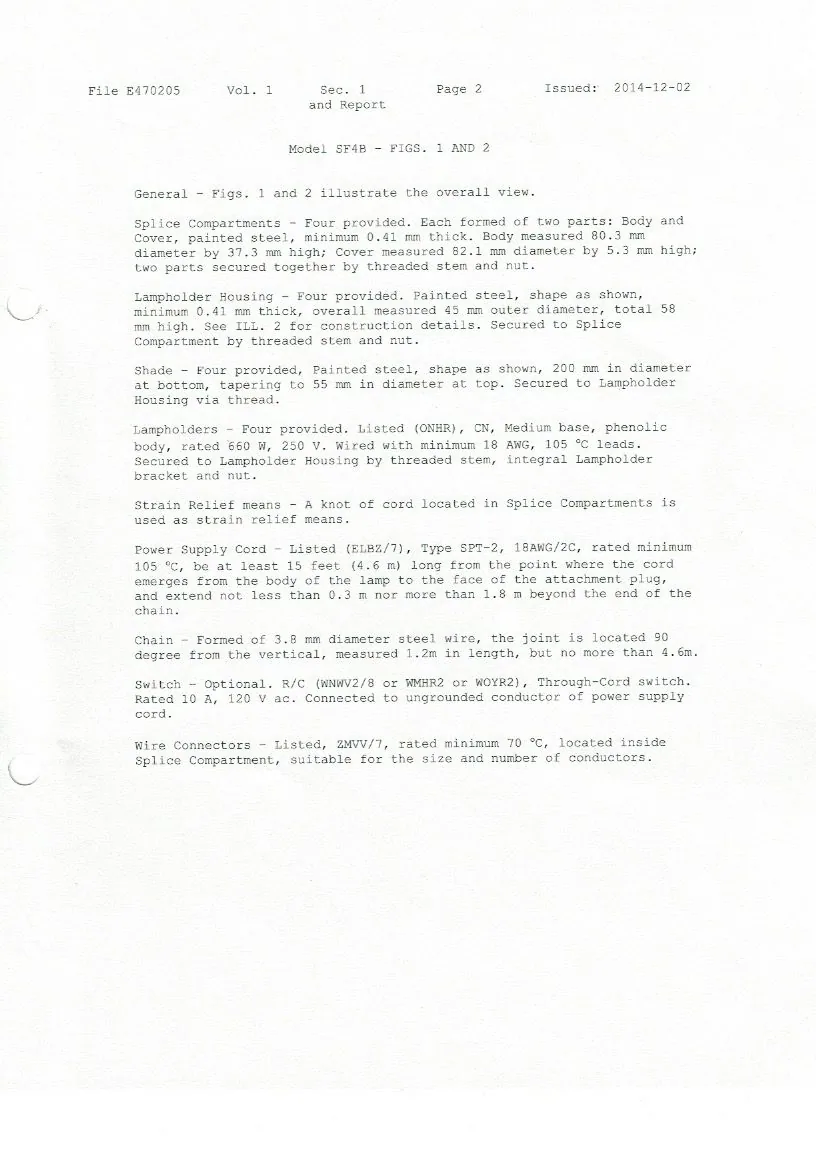

The report describes the components UL evaluated: the four splice compartments and lampholder housings, the painted-steel shades, the Listed medium-base lampholders (rated 660 W, 250 V, with 105 °C leads), the Listed SPT-2 power supply cord, the chain, an optional Listed through-cord switch (10 A, 120 V ac), and the Listed wire connectors inside the splice compartment. Each is rated for the loads and temperatures involved.
What The Listing Confirms
Built to the North American safety standard

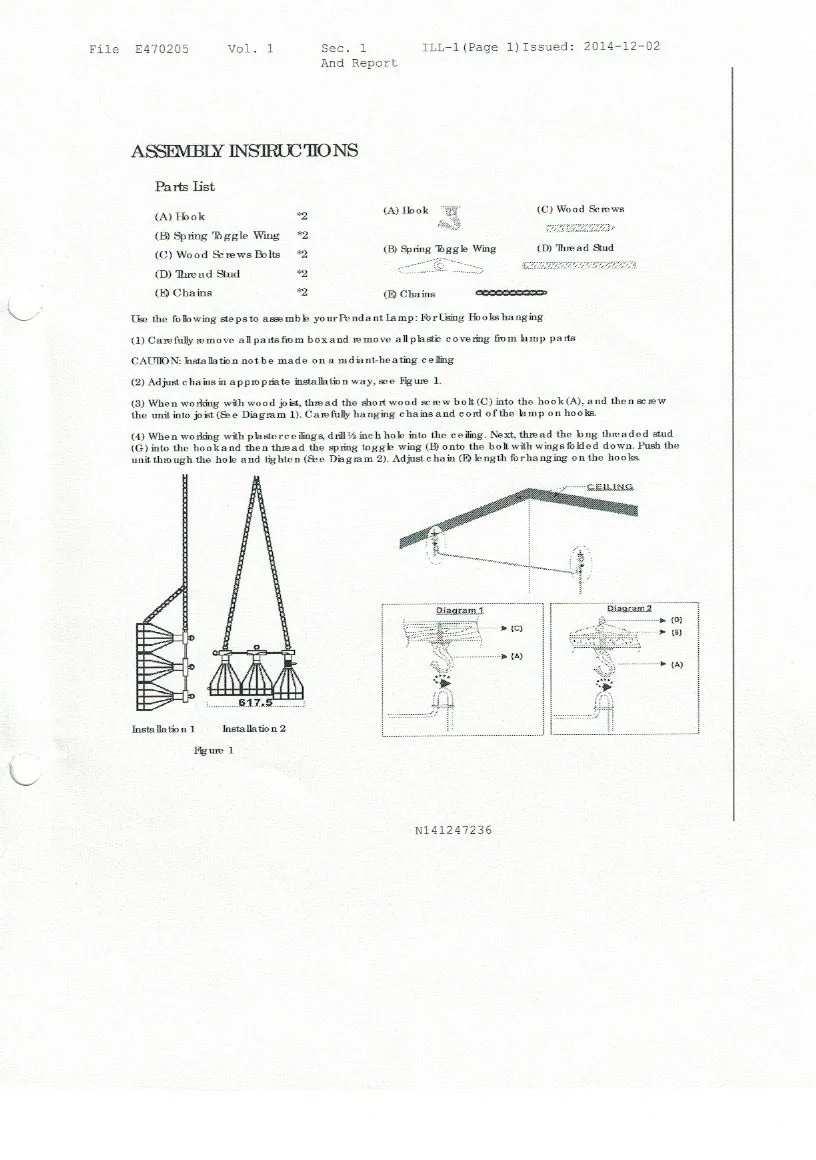

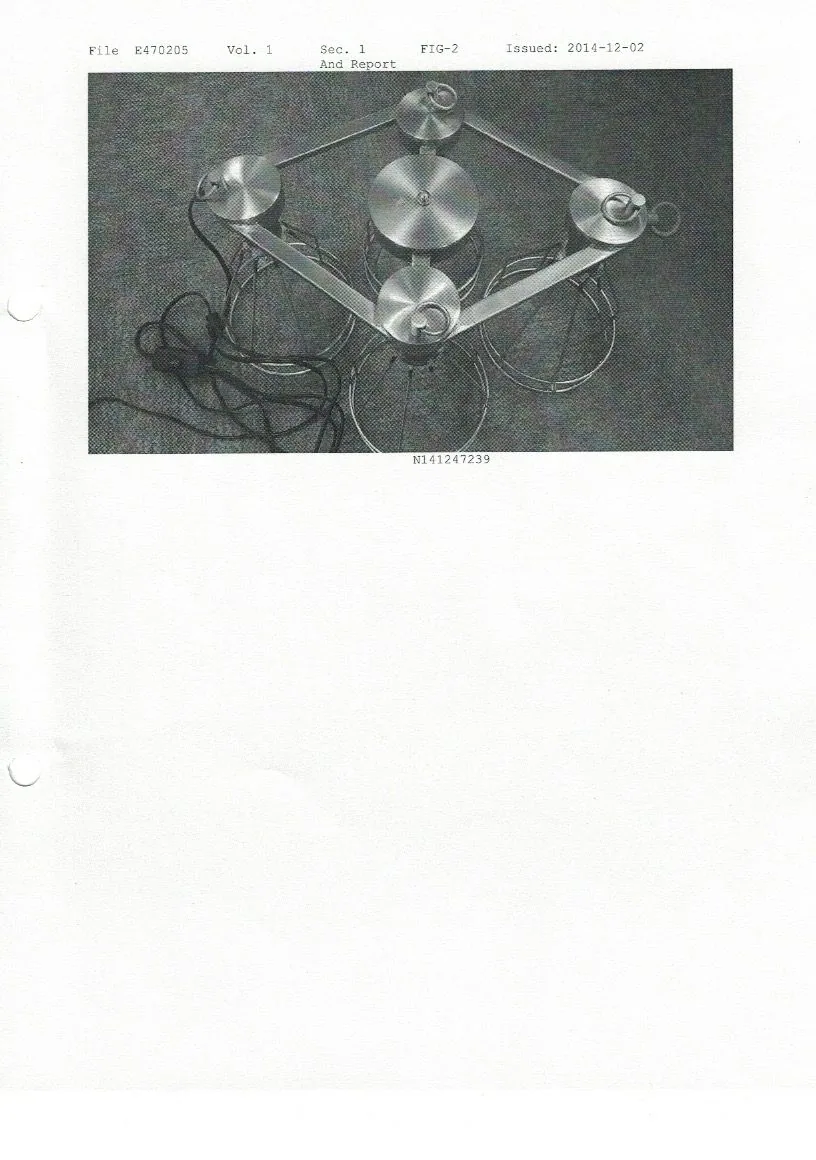

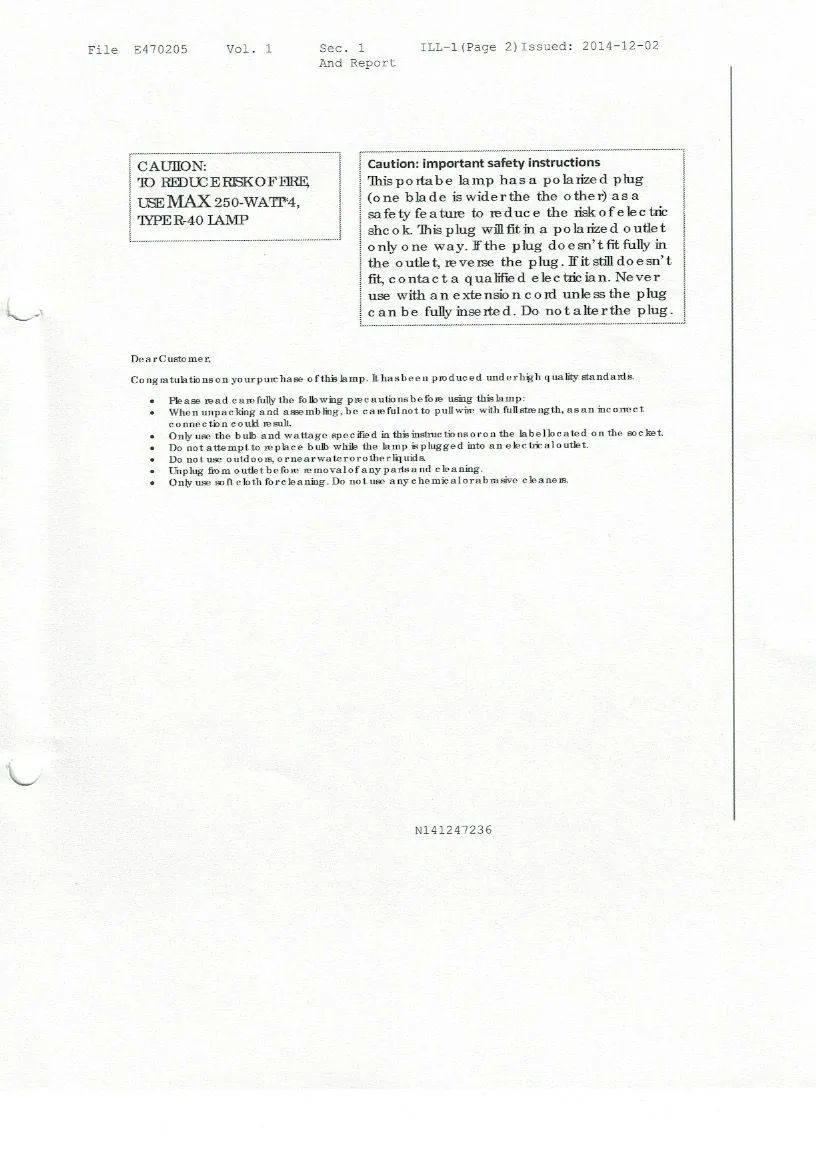

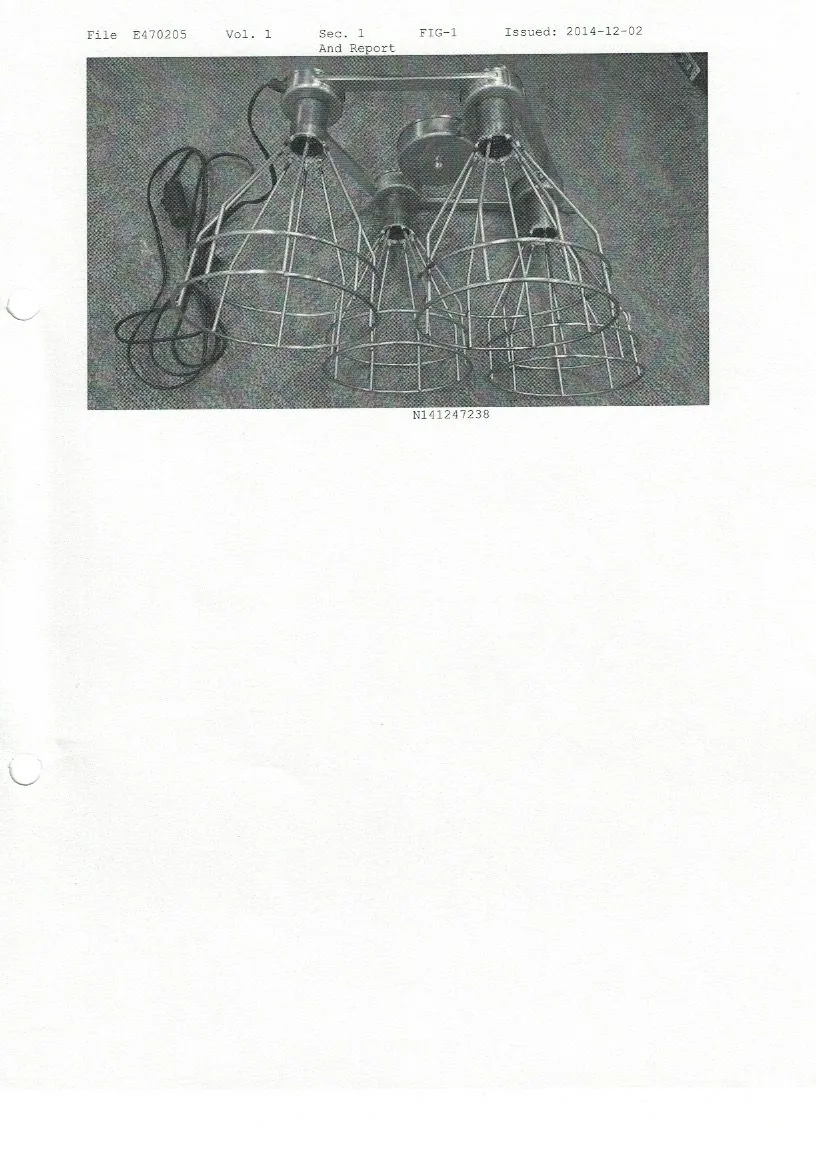

Carrying both the US and Canadian Listings means the fixture’s construction meets the requirements of UL 153 and CSA C22.2 No. 12, and that its individual components — lampholders, cord, switch, and wire connectors — are themselves Listed and rated for the application. The report also includes the product photographs, mounting-hardware details, and the assembly and safety instructions supplied with the fixture.
This report covers the 120 V, 60 Hz model SF4B for the North American market. The 220–230 V European configuration is covered under separate CE-LVD electrical-safety testing.
Scope of This Report
What this report covers
This report documents UL’s evaluation and Listing of the model SF4B portable luminaire, issued December 2, 2014 under File E470205. It reflects the construction described in the report and covers the 120 V North American version. You can verify the Listing by File number (E470205) in UL’s online certifications directory (Product iQ) at ul.com.
Full Report
Complete UL documentation

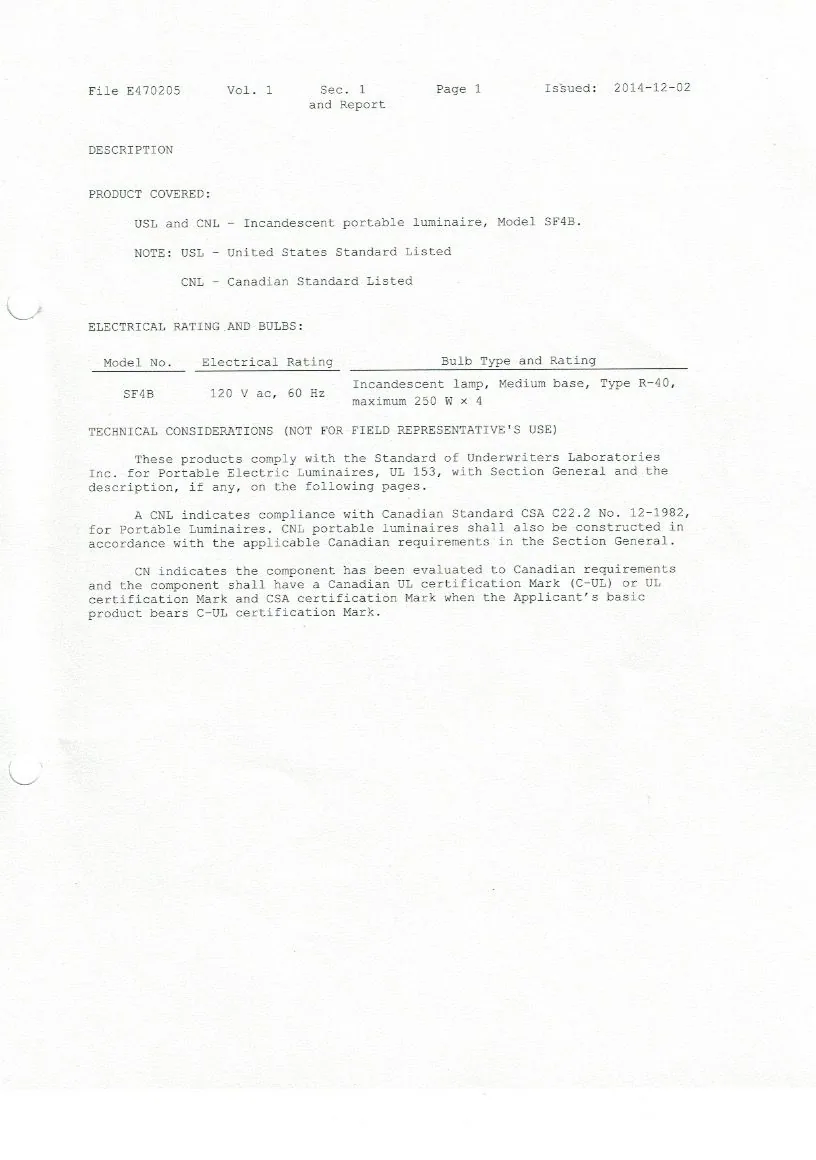

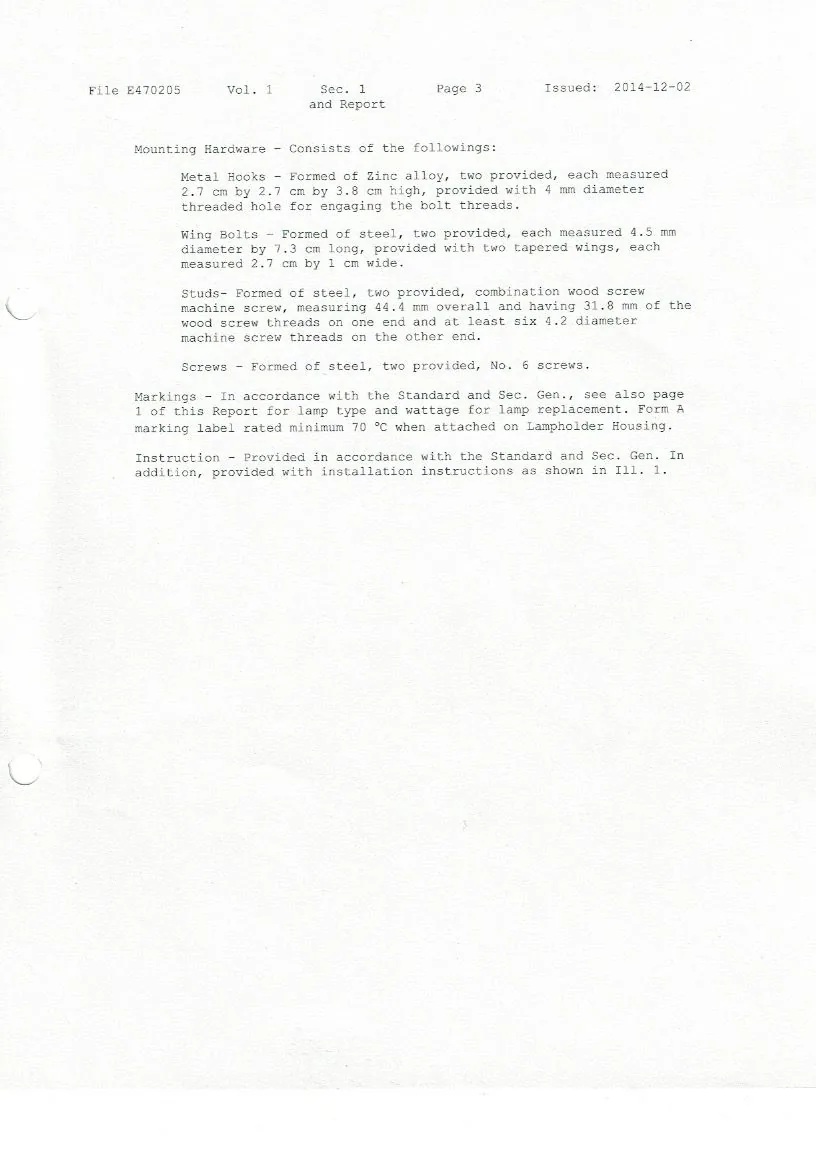

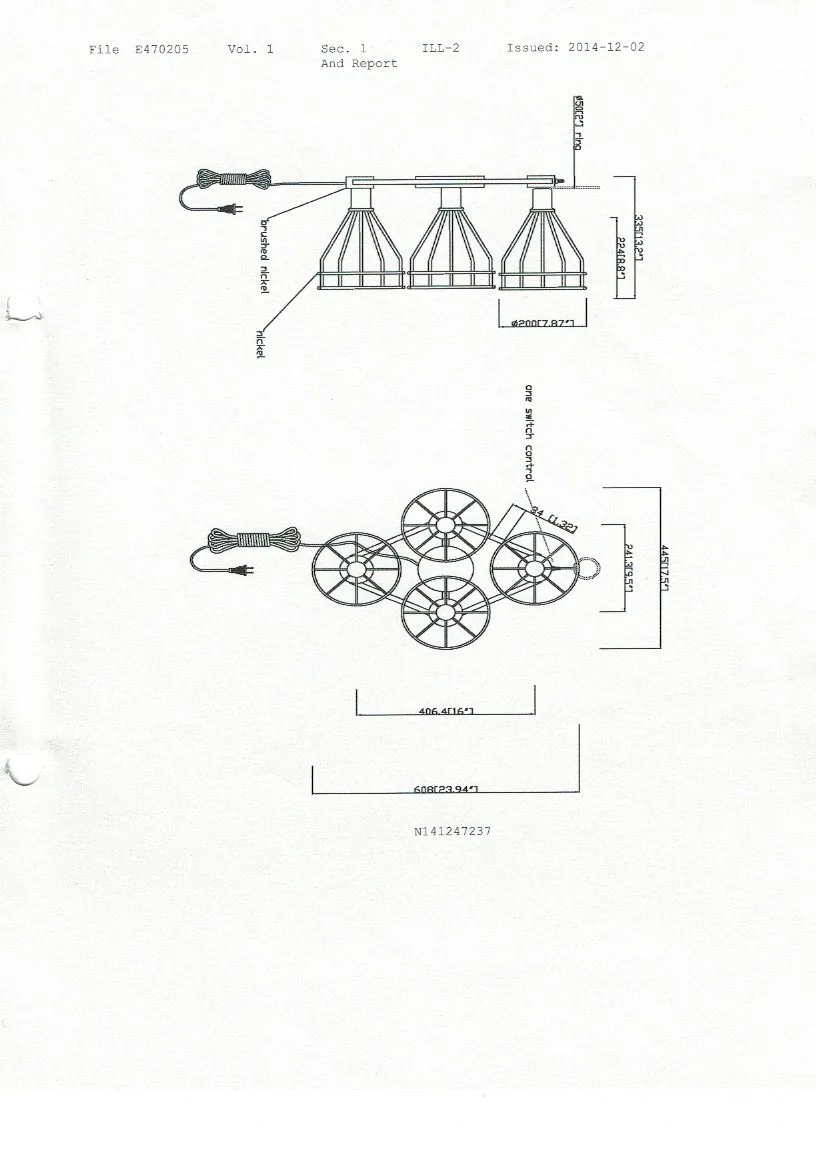

UL File E470205, report pages 1–8 — including the construction description, product photographs, and the assembly and safety instructions.
